DESCRIPTION:
PRICE:
DIMENSIONS:
RESIN:
COLOR:
LID/MANWAY:
SPECIFIC GRAVITY:
WEIGHT:
ITEM NUMBER:
MANUFACTURER:
$
” diameter x ” tall
”
pounds
Choose Your Own Fittings & Options
Our tanks are ‘blank’ tanks that have a lid/manway but no other fittings for connections.
You choose what fittings you want on the tank and where they go. Some of our fittings and options include:
- Bulkheads
- Flanges
- Insulation
- U-vents
- Top-fill lines
- Reverse Float Level Indicators

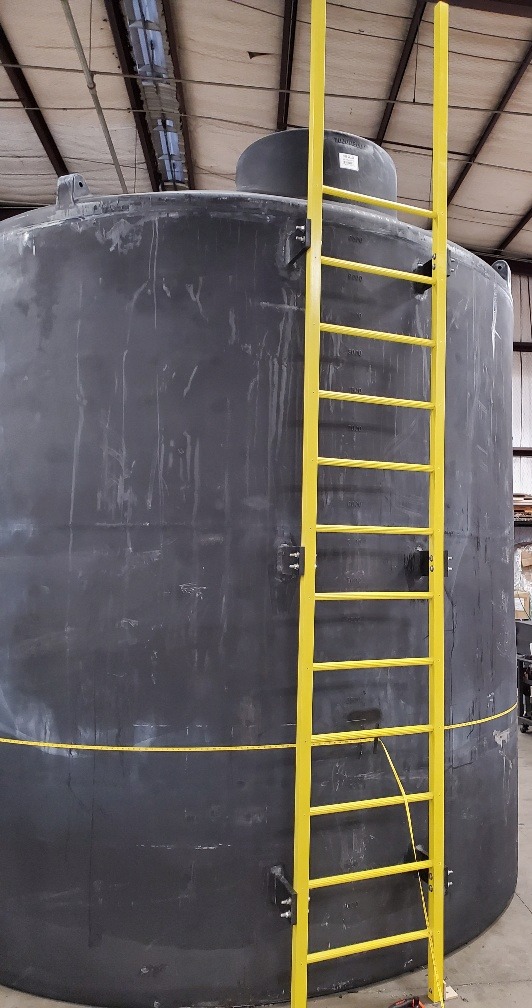

- Ladders
- Leak Detectors
- and more.
Resin Information
Kynar Flex is a chemically resistant PVDF copolymer with excellent thermal and mechanical properties.
🧪 General Overview
Type: Fluorinated thermoplastic copolymer (PVDF-based)
Chemical Resistance: Exceptional, suitable for harsh environments
- UV Stabilized: Yes. This Extends the life of the tank.
- FDA Approved Resin: Yes. Compliant with FDA 177.2600.
- Maximum Use Temperature: Up to 300F. for some applications.
- Color: White when molded. Changes to blue over time if exposed to UV rays.
- Translucent: No.
Dig Deeper
When rotomolded, PVDF, a fluorinated thermoplastic copolymer, delivers excellent chemical resistance. It is suitable for tanks, linings, and piping systems exposed to aggressive chemicals. Its maximum use temperature reaches up to 300F, ensuring thermal stability in high-temperature applications. The material also maintains low permeability and high purity, which is critical for applications in the pharmaceutical, and food processing industries.
Mechanically, rotomolded PVDF offers impressive toughness and flexibility. It has a Shore D hardness of 70–75, tensile strength ranging from 31.0 to 41.4 MPa, and elongation at break between 30% and 200%, depending on processing conditions. These properties contribute to its durability and resistance to cracking or stress under load. Additionally, its electrical insulation capabilities—with a volume resistivity of 2.0 × 10¹⁴ ohms·cm—make it suitable for electrochemical and electronic applications.
Tank Specifications:
WALLS:
SPECIFIC GRAVITY:
TANK USAGE:
GALLONS CALIBRATION:
PRESSURE:
LID/MANWAY:
CAPACITY:
Above Ground Only
Yes
Atmospheric pressure only
”
gallons
COLOR:
FDA APPOROVED RESIN:
UV STABILIZED:
FORK LIFT CHANNELS:
HEIGHT:
DIAMETER:
WEIGHT:
White changing to blue over time.
Yes
Yes
No
Shipping Details
Palletized Shipping
LENGTH:
WIDTH:
HEIGHT:
WEIGHT:
FREIGHT CLASS:
Dimensions
”
”
pounds
Shipping
DIAMETER:
HEIGHT:
WEIGHT:
FOB:
Dimensions
”
”
pounds
%fob%
Shipping note:
