PVDF tanks by Bailiff Enterprises · Willis, Texas936-228-1520
Rectangular tanks · PVDF
Compact PVDF rectangular tanks make the most of tight floor space and fit neatly against walls.
2 PVDF rectangular tanks from 40 to 50 gallons, priced from $3,490 to $4,690. Available in 1.9 SG rating and translucent white.
| 50 Gallon PVDF Rectangular Tank 1.9 SG | 50 | 41" L x 26" W x 15" H 3 ft 5 in L × 2 ft 2 in W × 1 ft 3 in H | 1.9 | Translucent White | 56 lbs | $4,690.00 |

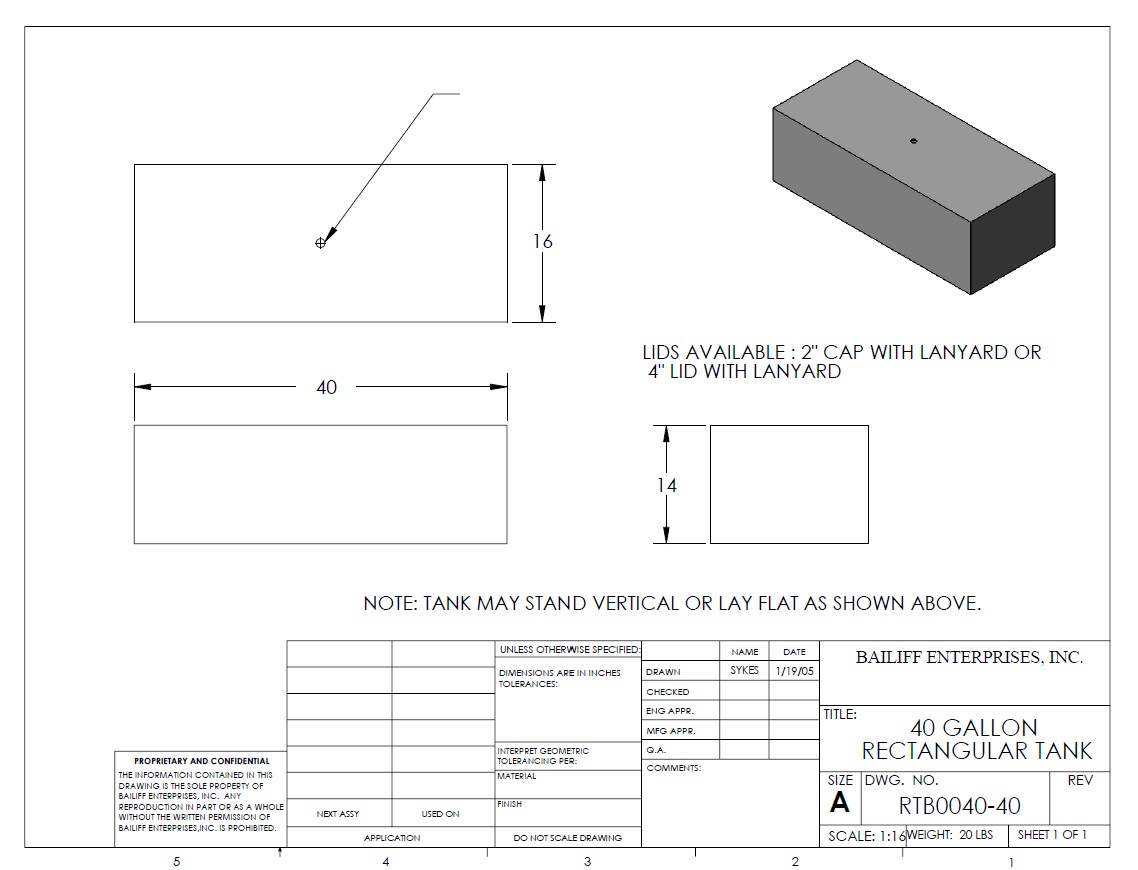

| 40 Gallon PVDF Rectangular Tank 1.9 SG 40 in Long | 40 | 40" L x 16" W x 14" H 3 ft 4 in L × 1 ft 4 in W × 1 ft 2 in H | 1.9 | Translucent White | 41 lbs | $3,490.00 |
SG (specific gravity) is the heaviest liquid a tank is built to hold. Water is 1.0, so a 1.9 SG tank is made for liquids up to 1.9 times as heavy as water. Choose an SG rating at or above the specific gravity of your liquid.
Why this tank
PVDF handles service temperatures up to 275°F in some applications, compared with 200°F for polypropylene and below 140°F for HDPE.
Sulfuric acid to 93%, hydrochloric acid 37%, bromine, chlorine and dozens more are rated Excellent. Check your chemical.
Rectangular tanks fit flat against walls and into tight footprints.
Welded couplings and flanges in the same PVDF as the tank, plus bulkheads and valves matched to your chemical, all installed before the tank ships. See fittings.
More PVDF tanks
FAQ
Our PVDF rectangular tanks range from 40 to 50 gallons. The table above lists stock sizes with dimensions, SG rating, color and price. Need a size that isn’t listed? Ask us.
PVDF handles service temperatures up to 275°F in some applications. Polypropylene tops out at 200°F and HDPE stays below 140°F.
The SG (specific gravity) rating is the heaviest liquid a tank is built to hold. Water is 1.0, so a 1.9 SG tank is made for liquids up to 1.9 times as heavy as water. Choose an SG rating at or above the specific gravity of your liquid.
106 chemicals in our database are rated Excellent for PVDF. Look yours up in our PVDF chemical compatibility list, or send us your SDS.
When floor space is tight. Rectangular tanks fit flat against walls and make the most of a small footprint.
Welded PVDF couplings (1″–4″ FNPT) and welded ANSI 150# flanges (1″–10″), plus bulkheads, valves, vents and level indicators, installed at our Willis, Texas plant.
Send the chemical, concentration, temperature and size. We’ll match the tank and fittings and send a quote.
