Horizontal tanks · PVDF
Low-profile PVDF horizontal tanks fit where overhead clearance is limited, with the same chemical resistance as our vertical PVDF tanks.
2 PVDF single wall horizontal tanks from 325 to 500 gallons, priced from $16,990 to $21,990. Available in 1.9 SG rating and translucent white.

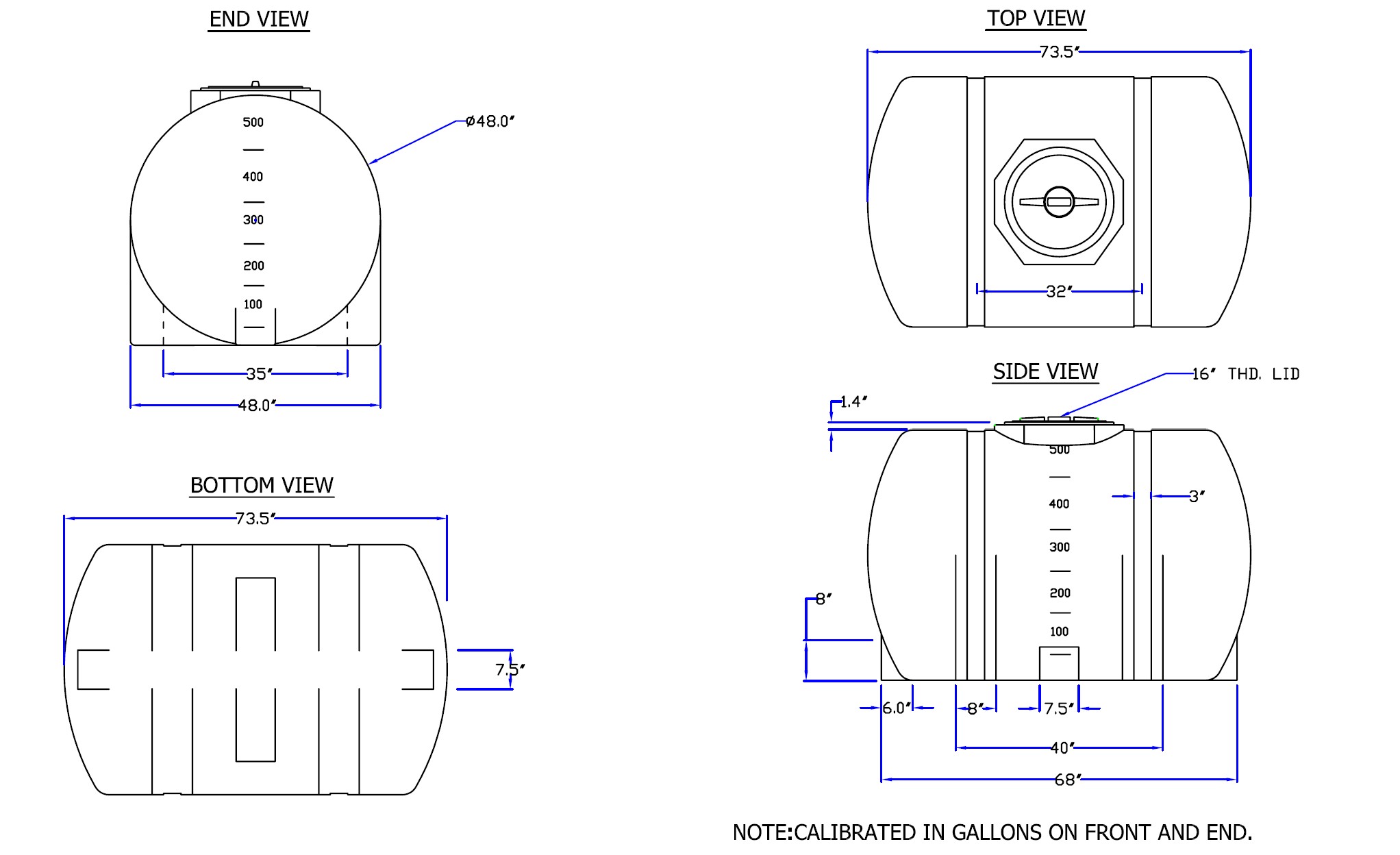

| 500 Gallon PVDF Horizontal Leg Tank 1.9 SG | 500 | 72" L x 48" W x 50" H 6 ft L × 4 ft W × 4 ft 2 in H | 1.9 | Translucent White | 255 lbs | $21,990.00 |

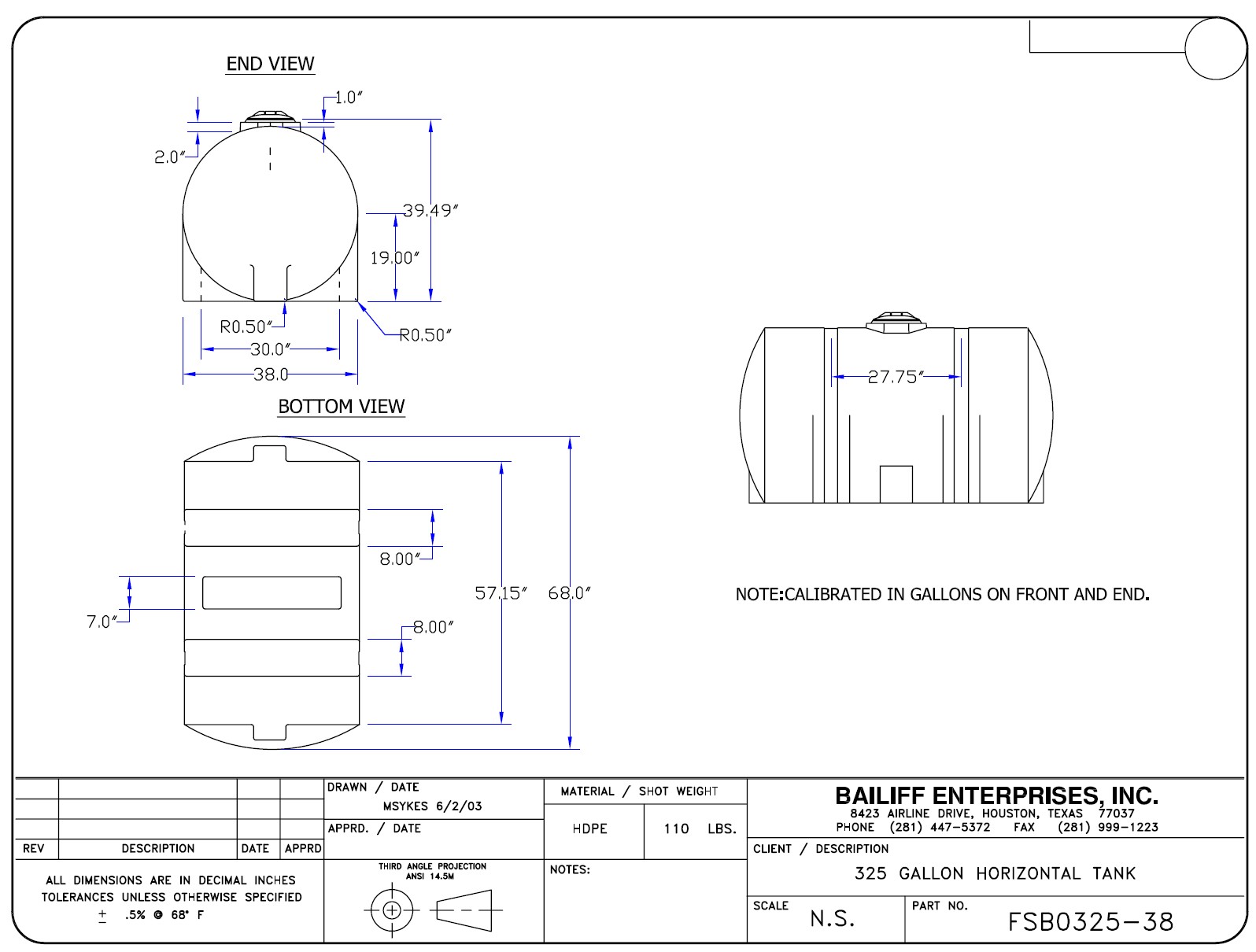

| 325 Gallon PVDF Horizontal Leg Tank 1.9 SG | 325 | 68" L x 38" W x 40" H 5 ft 8 in L × 3 ft 2 in W × 3 ft 4 in H | 1.9 | Translucent White | 198 lbs | $16,990.00 |
SG (specific gravity) is the heaviest liquid a tank is built to hold. Water is 1.0, so a 1.9 SG tank is made for liquids up to 1.9 times as heavy as water. Choose an SG rating at or above the specific gravity of your liquid.
Why this tank
PVDF handles service temperatures up to 275°F in some applications, compared with 200°F for polypropylene and below 140°F for HDPE.
Sulfuric acid to 93%, hydrochloric acid 37%, bromine, chlorine and dozens more are rated Excellent. Check your chemical.
Fits under low ceilings and in tight spaces where a vertical tank will not.
Welded couplings and flanges in the same PVDF as the tank, plus bulkheads and valves matched to your chemical, all installed before the tank ships. See fittings.
More PVDF tanks
FAQ
Our PVDF horizontal tanks range from 325 to 500 gallons. The table above lists stock sizes with dimensions, SG rating, color and price. Need a size that isn’t listed? Ask us.
PVDF handles service temperatures up to 275°F in some applications. Polypropylene tops out at 200°F and HDPE stays below 140°F.
The SG (specific gravity) rating is the heaviest liquid a tank is built to hold. Water is 1.0, so a 1.9 SG tank is made for liquids up to 1.9 times as heavy as water. Choose an SG rating at or above the specific gravity of your liquid.
106 chemicals in our database are rated Excellent for PVDF. Look yours up in our PVDF chemical compatibility list, or send us your SDS.
Choose a horizontal tank when overhead clearance is limited or you need a low center of gravity.
Welded PVDF couplings (1″–4″ FNPT) and welded ANSI 150# flanges (1″–10″), plus bulkheads, valves, vents and level indicators, installed at our Willis, Texas plant.
Send the chemical, concentration, temperature and size. We’ll match the tank and fittings and send a quote.
